APPLICATION

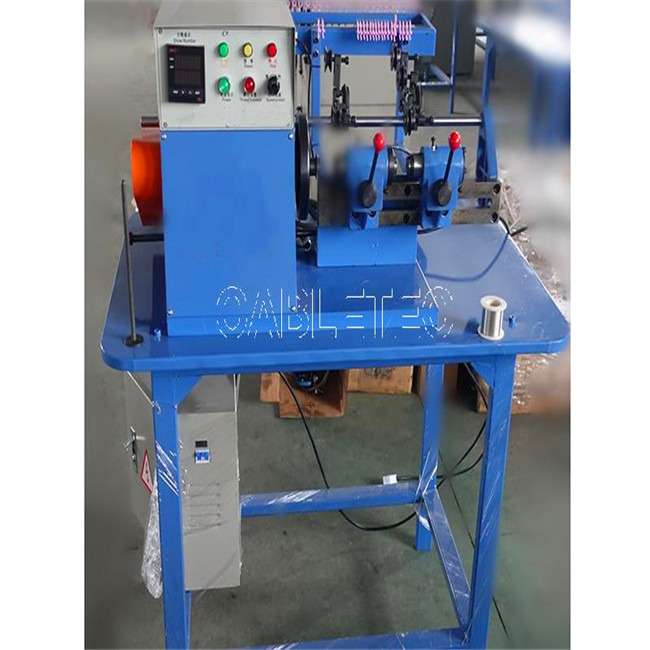

This rewinding machine has high rotate speed, it can combine silk timely, smoothly and orderly. We can make up the frame to send silk which tension doesn't change and make up the number of silk plate according to the requirement of our customers.
1. AC motor, Inverter control
2. 2-3 bobbins at same time
3. ≤2200 rpm
4. Bobbin≤250 mm
CHARATERS
1. The rewinding bobbin achieves the hanging wall chuck, wire-catch, footwall and so on automatically through the machine equipment which is controlled by the cylinder.
2. The rewinding principal axis is used the structure of four axis parallel, which makes many axis rotated simultaneously with high-speed
3. It is used the rigid pay-off device, which is improved the arrange quality of the rewinding wire
Specification
Name | Unit | |||
1 | Bobbin quantity | 4 | ||
2 | Bobbin speed | R/min | less than or equal to 2500 | |
3 | Wire diameter | mm | 0.05~0.2 | |
4 | Wire quantity | 1~9 | ||
5 | Main motor | Type | Y100L1-4 | |
Power frequency | KW Hz | 2.2 KW 50 Hz | ||
Rotation speed | R/min | 1420 | ||
6 | Noise | dB | less than or equal to 70 | |
7 | Outside size | mm | 1520*1446*1855 | |
